JG Through-hole Roller
넶PV：0

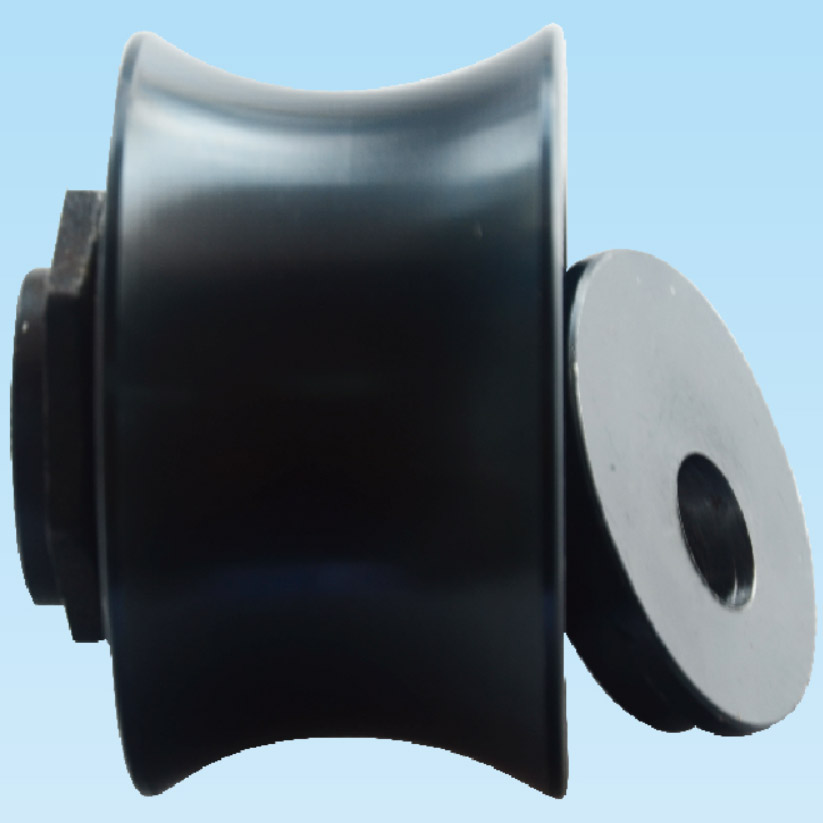

JG Through-hole Roller
Features
Through-hole design to prevent the rollers to fall off during operation.
Finish: Blackening or galvanizing
Data
| Dimensions (mm) |
| Big diameter (D) | Φ88 | Step height (h) | 5 |
| Small diameter (d) | Φ74 | Bearing width (Assembly height) (L) | 29.5-33.5 (4) (shifting) |
| Roller thickness(H) | 49 | Eccentricity (P) | 4 |
| Arc ( R ) | R39 | Center hole inner diameter (A) | Φ17 |
| Step outer diameter | Φ40 |
Big Dia.(D): Φ88; Small Dia.(d): Φ74; Roller thickness(H): 49 mm
