JL M8 nitrided drive pinion
넶PV：0
JL M8 nitrided drive pinion
Features
Made of 40Cr steel
Finish: Quenching and nitriding treatment
Widely used in Chinese brand construction lifts, with good commonality.
Data

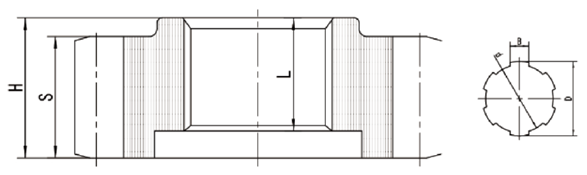

| Dimensions (mm) |
| Pinion height (H) | 52 | Common normal line (W) | 37.1 |
| Teeth thickness (S) | 45 | Spline length (L) | 42 |
| Teeth number (z) | 15 | Spline width (B) | 14 |
| Modulus (m) | 8 | Spline diameter (D) | Φ55 |
| Teeth profile angle (α) | 20° | Spline diameter (d) | Φ50 |
| Modification coefficient (x) | 0 | Spline number (N) | 6 |
Pinion height: 52mm; Teeth thickness: 45mm; Teeth number: 15; Modulus: 8
