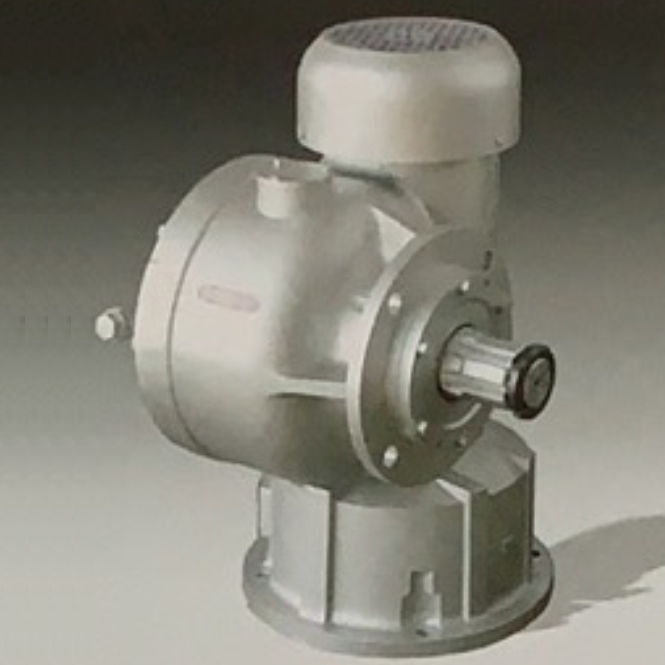

Construction Lift JWCI Type Worm Reducer
Features:
Drive high efficiency, carrying capacity, small size, light weight, compact structure, the long work life, and solved the oil spill problems of the similar models better. The work enviroments is -40℃ ~ +40℃, wom-axis operation can be positive and negative.
If enviromental temperature is higher than 40℃, cooling meatures must be adopted.
Technical Data
| Ratio i |
Input Rotate Speed r/min |
Input Power kw |
Rated Output Torque nm |
Efficiency % |
| 10 | 1500 | 14.16 | 850 | 91.3 |
| 12 | 1500 | 11.27 | 800 | 90.4 |
| 14 | 1500 | 11.02 | 800 | 89 |
| 16 | 1500 | 11.06 | 960 | 88 |
| 20 | 1500 | 8.592 | 970 | 86.5 |
| 25 | 1500 | 6.526 | 890 | 84 |
