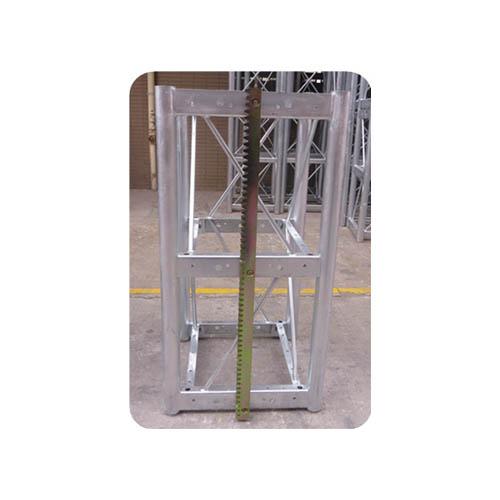

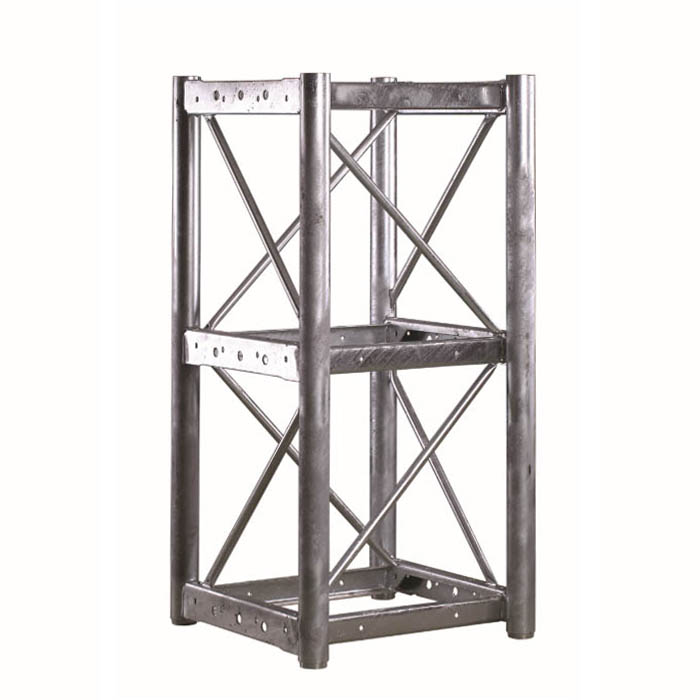

Square Column 650 Mast Section
We offer high quality mast of different column pipe thickness, each to support the light, medium and heavy range of construction products of different height. The majority of the accessories can be used collectively on hoists and platforms which fall into the same product category.
Technical Data
| SR. NO. | ITEM | PARAMETER |
| 1 | Mast Type | Square Column with Bolted Rack |
| 2 | Length Mast Section | 1.508 m |
| 3 | Center Distance Between Adjacent Columns | 650 mm |
| 4 | Column Pipe Diameter | 76 mm |
| 5 | Column Pipe Thickness | 4.75mm, 6.0mm, 8.0mm, 10mm |
| 6 | Mast Section to Section Connection | Bolted |
| 7 | Mast Materail | Q355B steel |
| 8 | Finish | Galvanized or Paint optional |
| 9 | Rack Mounting on Mast | Bolted |
| 10 | Rack Size | 40*60*1508mm, |
| 11 | Rack Material | LG60 steel, HB217-255 hardness |
| 12 | Rack Modulus | 8 |
| 13 | No of Teeth on Rack | 60 Teeth |
