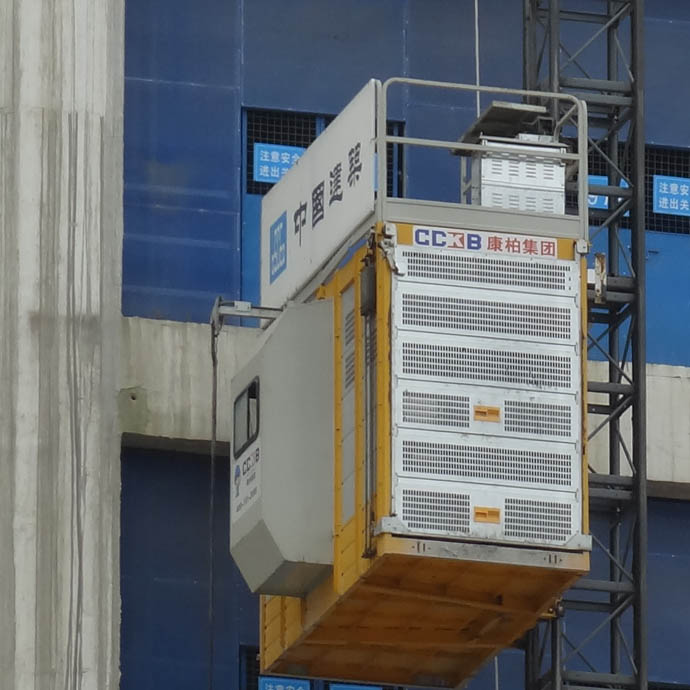

SC200BG KP-B11 Construction Hoist
For vertical transportation of passengers and materials at construction sites, plants, stock houses, etc.
Rack and Pinion Mast Climbing Construction Lift.
Smooth running with little noise or wear and tear.
Complete safety measures.
TÜV certified according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
Features
* Truly modular design, the drive devices and cars are generic and interchangeable.
* Apply high transmission efficiency and energy-saving helical gearbox.
* Frequency Control(FC) motors with low starting current and no jerk at star/stop.
* The racks are bolted at the mast (guide rail) center to reduce the offset load, make the lifts run more stably.
* The guide rollers are non-eccentric, no need to adjust them after installation, which means faster installs and less errors in installation.
* Strong structure, accurate and fine processing, duarable work life.
* Integrated cage roof, made by a thicken checkered plate with edges fully welded, is very strong and no leakage.
* Modularized cage doors of vertical sliding doors and flap doors as loading/unloading ramp are available.
* Electro mechanical interlock of cage roof hatch, entrance/discharge doors.
* Certified safety brake system, including Up/Down Limit Switches, Emergency Limit Switch, Emergency Switch Button, centrifugal brake Anti-drop Safety Device, etc.
* Base-Level Alarm.
* Drop test facility with remote pendant.
* Easy access to electrical panels.
* Reliable swing side open ground enclosure gate with electro mechanical interlock.
* Multi-optional power supply methods are available, including cable, Slide Contact Line System (Busbar).
Technical Data
| Item & Article No. | SC200BG, KP-B11; |
| Number of Cages | Single Cage |
| Payload Capacity | 2,000 KG |
| Lifting Speed | 0–60 meter/minute, fully loaded |
| Max. Lifting Height | 250 m / 450 m * |
| Cage Size (internal) | 3.2(Length)*1.5((Width)*2.35(Height) meter |
| Cage Door | Modularized Door |
| Engine Power | 3*15 KW |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*55 KW |
| Gearbox | Helical Gearbox |
| Anti-drop Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
