SC200 KP-B07C Cement Lifter
This special elevator offer a safe and efficent solution of vertical cement transportation in construction site, such as bridge construction.
Strong structure, accurate and fine processing, duarable work life.
Frequency Control(FC) motors with low starting current and no jerk at star/stop.
Smooth running with little noise or wear and tear.
The equipment is TÜV certified according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
Features

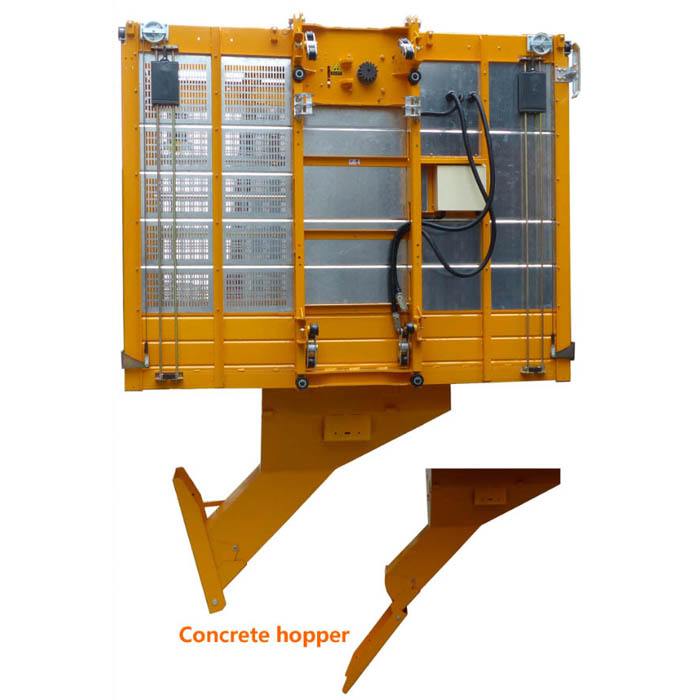

* Modular design, the concrete hopper can be removed to change into a standard construction hoist after concrete lifting works finished. And the concrete hopper also can be reassembled when necessary.
* Big size of elevator car is the same as a standard construction hoist.
* Apply high transmission efficiency and energy-saving helical gearbox.
* Easy access to electrical panels.
* Electro mechanical interlock of cage roof hatch, entrance/discharge doors.
* Complete safety measures.
* Certified safety brake system.
Technical Data
| Item & Article No. | SC200 KP-B07C Cement Lifter |
| Number of Cages | Single Cage |
| Payload Capacity | 2,000 KG |
| Lifting Speed | 0–46 meter/minute, fully loaded |
| Max. Lifting Height | 250 m / 450 m * |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) meter |
| Cage Door | Modularized Doors |
| Concrete Hopper Capacity | 0.6 CUM |
| Engine Power | 2*15 KW |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*37 KW |
| Gearbox | Helical Gearbox |
| Anti-drop Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
