BHFS-5-16A/80 Conductive Conduit
넶PV：0
Features
The rigid conductive rail can realize mobile power supply in the narrow space.

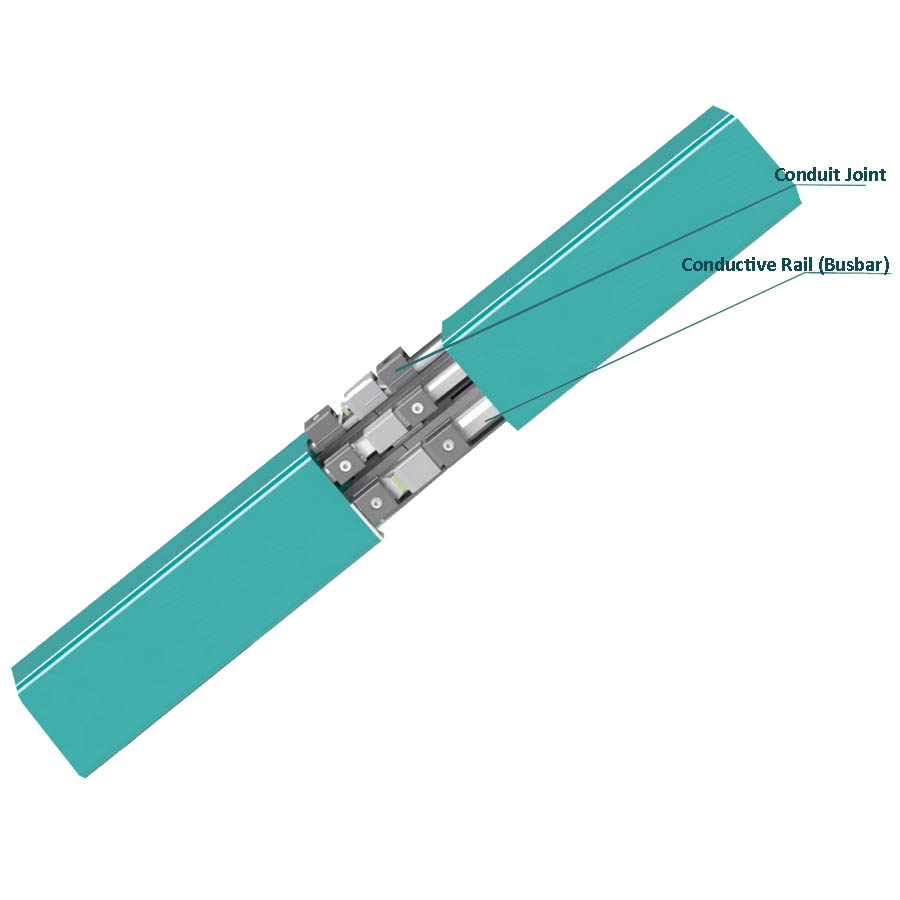

Plug in type connection of conductive conduits make installation in high place be easy.
The segment connection design make the multi point additional power supply be available to overcome the voltage drop.
The conductive conduits are fixed on the mast, and current collectors run in them, so the load of cage will be reduced.
Technical Data
| SR. NO. | ITEM | PARAMETER |
| 1 | Article Number | BHFS-5-16A/80 |
| 2 | Rated Current | 80A |
| 3 | Rated Voltage | 380V |
| 4 | Busbar Number | 5 |
| 5 | Dimension | 3016x60x54 mm |
| 6 | Weight | 7.2kg |
| 7 | Insulation Resistance | ≥ 0.5MΩ |
| 8 | Dielectric Strength | AC 3750V, no breakdown or flickering in 1 minute |
| 9 | Protection Grade of Shell | IP23 |
| 10 | Electrothermal Stability | 20 times/rated 1 s |
| 11 | Rated Short-time Withstand Current & Rated Peak Withstand Current | 4.5KA / 6.75KA |
| 12 | Ambient Features | 1, Heat Resistance Test: Normal Type +55 ℃ |
| 2, Low Temperature Resistance Test: -30 ℃ | ||
| 3, Heat and Humidity Resistance Test: Relative Humidity 95%, +25 ℃ | ||
| 4, Atmospheric Pressure: 86～106 KPa | ||
| 13 | Flame Resistance | V0 (Self Extinguishing) |
| 14 | Parameter of Transmission Line | Compliant with National Standard GB/T3048 <cable conductor>; |
| Resistance ≤ 0.028 Ωmm²/m ( +20 ℃) |
Rated Current: 80A, Rated Voltage: 380V, Busbar Number: 5, Equivalent to 16mm² Cable
