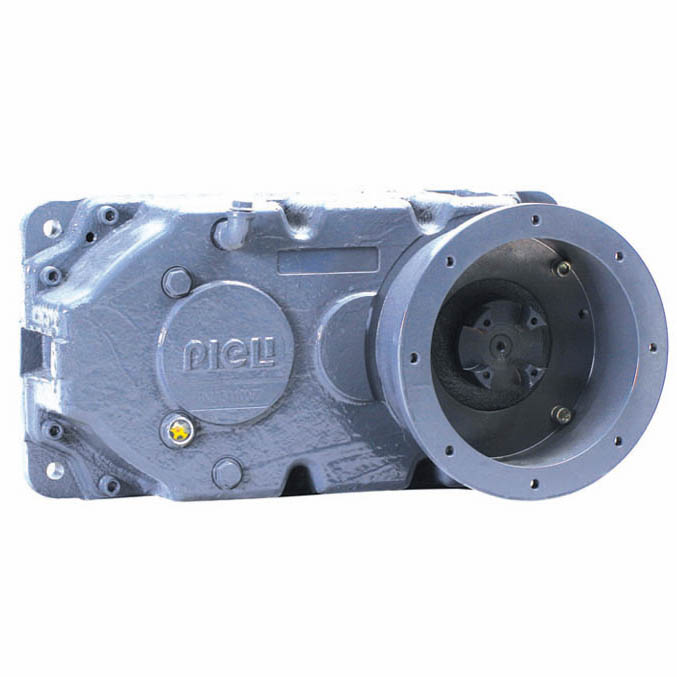

YJ150 Cylindrical Helical Gear Reducer
Features
1. YJBNL150 is a special helical gearbox for construction lifts. It is a high efficiency and energy saving power transmission mechanism.
2. The overall structure of the reducer is compact and reasonable, with high transmission efficiency, high accuracy, low noise, smoothly and reliable operation, and durability.
3. The gearbox housing is made of high-quality cast iron with high rigidity and aseismic property.
4. High quality alloy steel is used in all gear systems. The main manufacturing processes are forging, carburizing, gear grinding, and so on, with high tooth wear resistance. It can bear larger torque and load and rotate smoothly.
5. The split type box is convenient for installation, maintenance and maintenance.
Technical Data
| Art. No. | Model | Center Distance | Transmission Ratio | Input Power | Input Speed | Output Speed | Transmission Efficiency Rate |
| (mm) | (i) | (Kw) | (r/min) | (r/min) | (%) | ||
| BJ-10A(B) | YJ150-10A(B) | 150 | 10 | 15 | 1390 | 139 | ≧94 |
| BJ-12A(B) | YJ150-12A(B) | 12 | 11 | 116 | |||
| 15 | |||||||
| BJ-16A(B) | YJ150-16A(B) | 16 | 11 | 87 | |||
| 13 | |||||||
| BJ-18A(B) | YJ150-18A(B) | 18 | 9.5 | 77 | |||
| 11 | |||||||
| 15 | |||||||
| BJ-20A(B) | YJ150-20A(B) | 20 | 11 | 69.5 |
