Retractable Loading Deck Model MLP2200-H
Retractable Loading Deck Model MLP2200-H
Retractable Loading Deck is product developed according to the trend of transferring materials and tools between floors and ground. It is to transport the materials, equipment and tools to the construction floor and be a transfer station that transports waste and tools to the ground.
Retractable Loading Deck is a unique product to improve materials handling efficiency and safety for the storey-buildings and high-rise buildings. It offers an efficient and cost saving method of delivering goods to different levels by using a crane. When cargos are required to be delivered to or from a particular floor, all the decks above that level can be retracted, enabling the crane to operate unobstructed.
Size and Technical Data
| Item | Unit | Data | Note |
| Outer Width | mm | 2200 | |
| Inner Width | mm | 1740 | |
| Forth/Rear Support Prop Spacing | mm | 2300 | |
| Left/Right Support Prop Spacing | mm | 2050 | |
| Height at Folded | mm | 510/420 | |
| Height of Side Panel | mm | 1200 | |
| Min Support Prop Height | mm | 2400 | |
| Max Support Prop Height | mm | 3300 | |
| Length at Retracted State | mm | 5805 | |
| Length at Extended State | mm | 9435 | |
| Extending Out Length of Stationary Frame | mm | 1450 | |
| Distance from Front Prop to Building Facade | mm | 1695 | |
| Extending Length of Moveable Deck | mm | 3800 | |

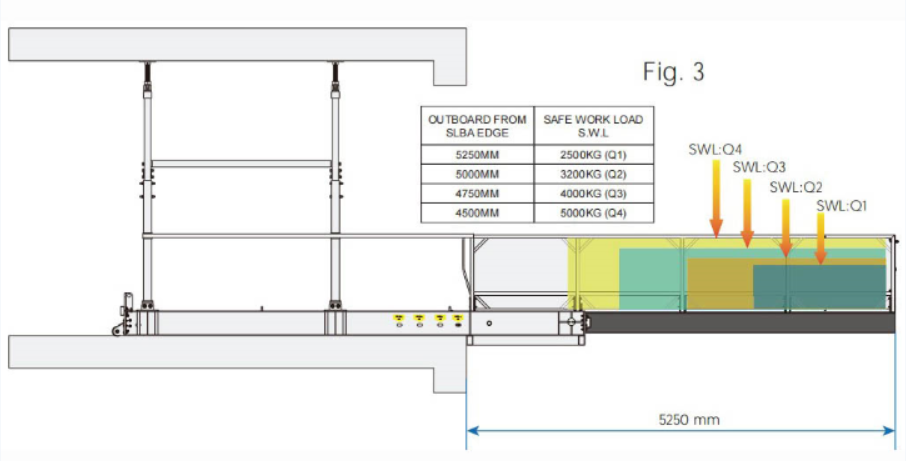

| Maximum Total Load (equidistribution) | ton | 5 |
